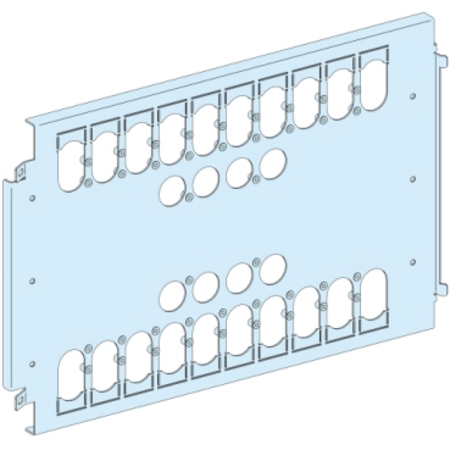

Placa de montaj 3,4 fixare verticala, NS250 Schneider

Descriere produs

Gama: PrismaSeT
gama de produse: PrismaSeT P
Tip produs sau componenta: Placa de montare
categorii accesorii / piese de schimb: Accesoriu de instalare
Compatibilitate gama: PrismaSeT (PrismaSeT P) dulap
Descrierea instalatiei: Firida 650 mm 400 mm
dispozitiv instalat: Easypact fix CVS100...160 fara protecţie punere la pămant - comandă: manerul rotativ frontal direct - vertical instalare
Easypact fix CVS250 fara protecţie punere la pămant - comandă: manerul rotativ frontal direct - vertical instalare
Compact fix NSX100...160 fara protecţie punere la pămant - comandă: manerul rotativ frontal direct - vertical instalare
Compact fix NSX250 fara protecţie punere la pămant - comandă: manerul rotativ frontal direct - vertical instalare
Easypact fix CVS100...160 cu protecţie punere la pămant - comandă: manerul rotativ frontal direct - vertical instalare
Easypact fix CVS250 cu protecţie punere la pămant - comandă: manerul rotativ frontal direct - vertical instalare
Compact fix NSX100...160 cu protecţie punere la pămant - comandă: manerul rotativ frontal direct - vertical instalare
Compact fix NSX250 cu protecţie punere la pămant - comandă: manerul rotativ frontal direct - vertical instalare
Compact fix NSX100...160 fara protecţie punere la pămant - comandă: mecanism motor - vertical instalare
Compact fix NSX250 fara protecţie punere la pămant - comandă: mecanism motor - vertical instalare
Compact fix NSX100...160 cu protecţie punere la pămant - comandă: mecanism motor - vertical instalare
Compact fix NSX250 cu protecţie punere la pămant - comandă: mecanism motor - vertical instalare
descrierea polilor: 4 x 3P fix CVS100...160 vertical instalare
3 x 4P fix CVS100...160 vertical instalare
4 x 3P fix CVS250 vertical instalare
3 x 4P fix CVS250 vertical instalare
4 x 3P fix NSX100...160 vertical instalare
3 x 4P fix NSX100...160 vertical instalare
4 x 3P fix NSX250 vertical instalare
3 x 4P fix NSX250 vertical instalare
numar de module verticale (50 mm): 9 moduleCVS100...160 fara protecţie punere la pămant , direct in 650 mm firida
9 moduleCVS250 fara protecţie punere la pămant , direct in 650 mm firida
6 moduleNSX100...160 fara protecţie punere la pămant , Linergy FC in 650 mm firida
8 moduleNSX100...160 fara protecţie punere la pămant , direct in 650 mm firida
7 moduleNSX250 fara protecţie punere la pămant , Linergy FC in 650 mm firida
9 moduleNSX250 fara protecţie punere la pămant , direct in 650 mm firida
11 moduleCVS100...160 cu protecţie punere la pămant , direct in 650 mm firida
11 moduleCVS250 cu protecţie punere la pămant , direct in 650 mm firida
8 moduleNSX100...160 cu protecţie punere la pămant , Linergy FC in 650 mm firida
10 moduleNSX100...160 cu protecţie punere la pămant , direct in 650 mm firida
9 moduleNSX250 cu protecţie punere la pămant , Linergy FC in 650 mm firida
11 moduleNSX250 cu protecţie punere la pămant , direct in 650 mm firida
standarde: IEC 61439-2
certificari produs: ASTA
material: Tabla de otel
tratament protector: Tratare prin electroforeza si praf de poliester epoxidic, polimerizat puternic
finisare suprafata: Mat
Texturat
culoare: Alb (RAL 9003)
latime: 606 mm
inaltime: 147 mm
adancime: 372 mm
greutate neta: 2,28 kg
Unitate functionala: 650 mm 400 mm PrismaSeT P firida Easypact CVS100...160 fara fix manerul rotativ frontal direct vertical 3P 4 direct 9 162,5 mm
650 mm 400 mm PrismaSeT P firida Easypact CVS100...160 fara fix manerul rotativ frontal direct vertical 4P 3 direct 9 162,5 mm
650 mm 400 mm PrismaSeT P firida Easypact CVS250 fara fix manerul rotativ frontal direct vertical 3P 4 direct 9 162,5 mm
650 mm 400 mm PrismaSeT P firida Easypact CVS250 fara fix manerul rotativ frontal direct vertical 4P 3 direct 9 162,5 mm
650 mm 400 mm PrismaSeT P firida Compact NSX100...160 fara fix manerul rotativ frontal direct vertical 3P 4 Linergy FC 6 62,5 mm
650 mm 400 mm PrismaSeT P firida Compact NSX100...160 fara fix mecanism motor vertical 3P 4 Linergy FC 6 62,5 mm
650 mm 400 mm PrismaSeT P firida Compact NSX100...160 fara fix manerul rotativ frontal direct vertical 4P 3 Linergy FC 6 62,5 mm
650 mm 400 mm PrismaSeT P firida Compact NSX100...160 fara fix mecanism motor vertical 4P 3 Linergy FC 6 62,5 mm
650 mm 400 mm PrismaSeT P firida Compact NSX100...160 fara fix manerul rotativ frontal direct vertical 3P 4 direct 8 162,5 mm
650 mm 400 mm PrismaSeT P firida Compact NSX100...160 fara fix manerul rotativ frontal direct vertical 4P 3 direct 8 162,5 mm
650 mm 400 mm PrismaSeT P firida Compact NSX100...160 fara fix mecanism motor vertical 3P 4 direct 8 162,5 mm
650 mm 400 mm PrismaSeT P firida Compact NSX100...160 fara fix mecanism motor vertical 4P 3 direct 8 162,5 mm
650 mm 400 mm PrismaSeT P firida Compact NSX250 fara fix manerul rotativ frontal direct vertical 3P 4 Linergy FC 7 62,5 mm
650 mm 400 mm PrismaSeT P firida Compact NSX250 fara fix mecanism motor vertical 3P 4 Linergy FC 7 62,5 mm
650 mm 400 mm PrismaSeT P firida Compact NSX250 fara fix manerul rotativ frontal direct vertical 4P 3 Linergy FC 7 62,5 mm
650 mm 400 mm PrismaSeT P firida Compact NSX250 fara fix mecanism motor vertical 4P 3 Linergy FC 7 62,5 mm
650 mm 400 mm PrismaSeT P firida Compact NSX250 fara fix manerul rotativ frontal direct vertical 3P 4 direct 9 162,5 mm
650 mm 400 mm PrismaSeT P firida Compact NSX250 fara fix manerul rotativ frontal direct vertical 4P 3 direct 9 162,5 mm
650 mm 400 mm PrismaSeT P firida Compact NSX250 fara fix mecanism motor vertical 3P 4 direct 9 162,5 mm
650 mm 400 mm PrismaSeT P firida Compact NSX250 fara fix mecanism motor vertical 4P 3 direct 9 162,5 mm
650 mm 400 mm PrismaSeT P firida Compact NSX100...160 cu fix mecanism motor vertical 4P 3 Linergy FC 8 62,5 mm
650 mm 400 mm PrismaSeT P firida Compact NSX100...160 cu fix manerul rotativ frontal direct vertical 3P 4 direct 10 162,5 mm
650 mm 400 mm PrismaSeT P firida Compact NSX100...160 cu fix manerul rotativ frontal direct vertical 4P 3 direct 10 162,5 mm
650 mm 400 mm PrismaSeT P firida Compact NSX100...160 cu fix mecanism motor vertical 3P 4 direct 10 162,5 mm
650 mm 400 mm PrismaSeT P firida Compact NSX100...160 cu fix mecanism motor vertical 4P 3 direct 10 162,5 mm
650 mm 400 mm PrismaSeT P firida Compact NSX250 cu fix manerul rotativ frontal direct vertical 3P 4 Linergy FC 9 62,5 mm
650 mm 400 mm PrismaSeT P firida Compact NSX250 cu fix mecanism motor vertical 3P 4 Linergy FC 9 62,5 mm
650 mm 400 mm PrismaSeT P firida Compact NSX250 cu fix manerul rotativ frontal direct vertical 4P 3 Linergy FC 9 62,5 mm
650 mm 400 mm PrismaSeT P firida Compact NSX250 cu fix mecanism motor vertical 4P 3 Linergy FC 9 62,5 mm
650 mm 400 mm PrismaSeT P firida Compact NSX250 cu fix manerul rotativ frontal direct vertical 3P 4 direct 11 162,5 mm
650 mm 400 mm PrismaSeT P firida Compact NSX250 cu fix manerul rotativ frontal direct vertical 4P 3 direct 11 162,5 mm
650 mm 400 mm PrismaSeT P firida Compact NSX250 cu fix mecanism motor vertical 3P 4 direct 11 162,5 mm
650 mm 400 mm PrismaSeT P firida Compact NSX250 cu fix mecanism motor vertical 4P 3 direct 11 162,5 mm
